For MY25, I handled a lot of the Drafting and GD&T for the components of the car. Attached is my work.

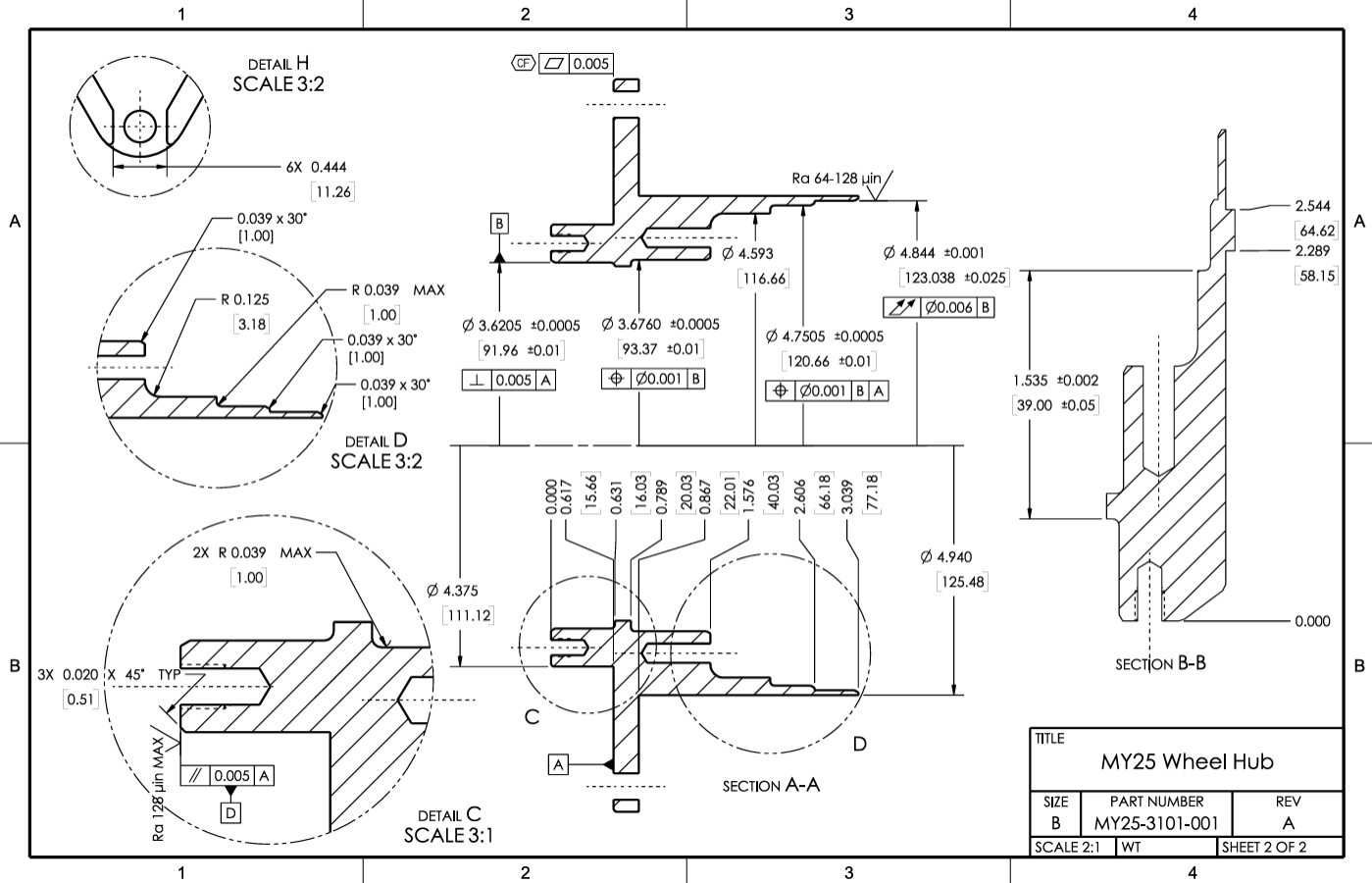

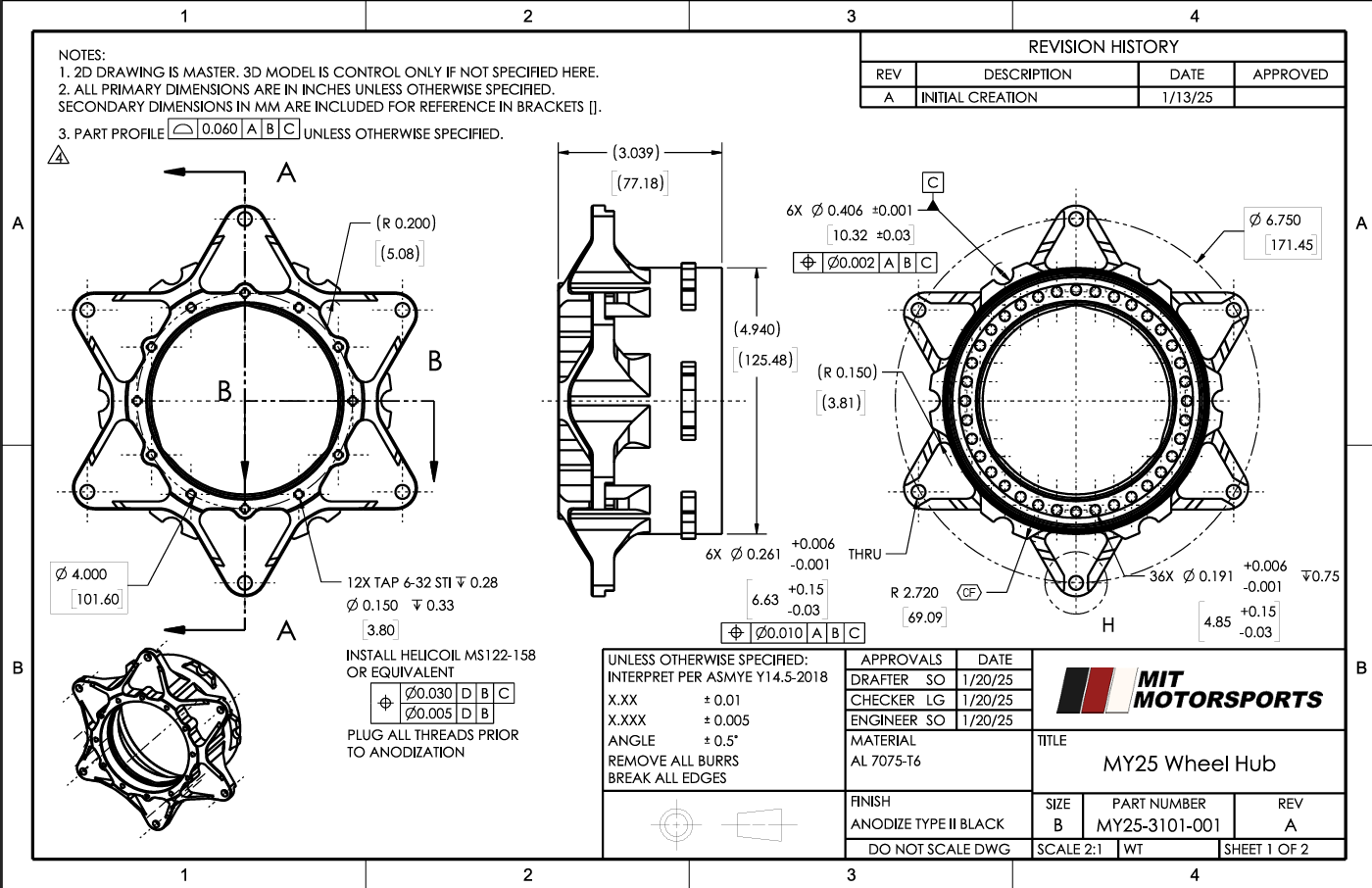

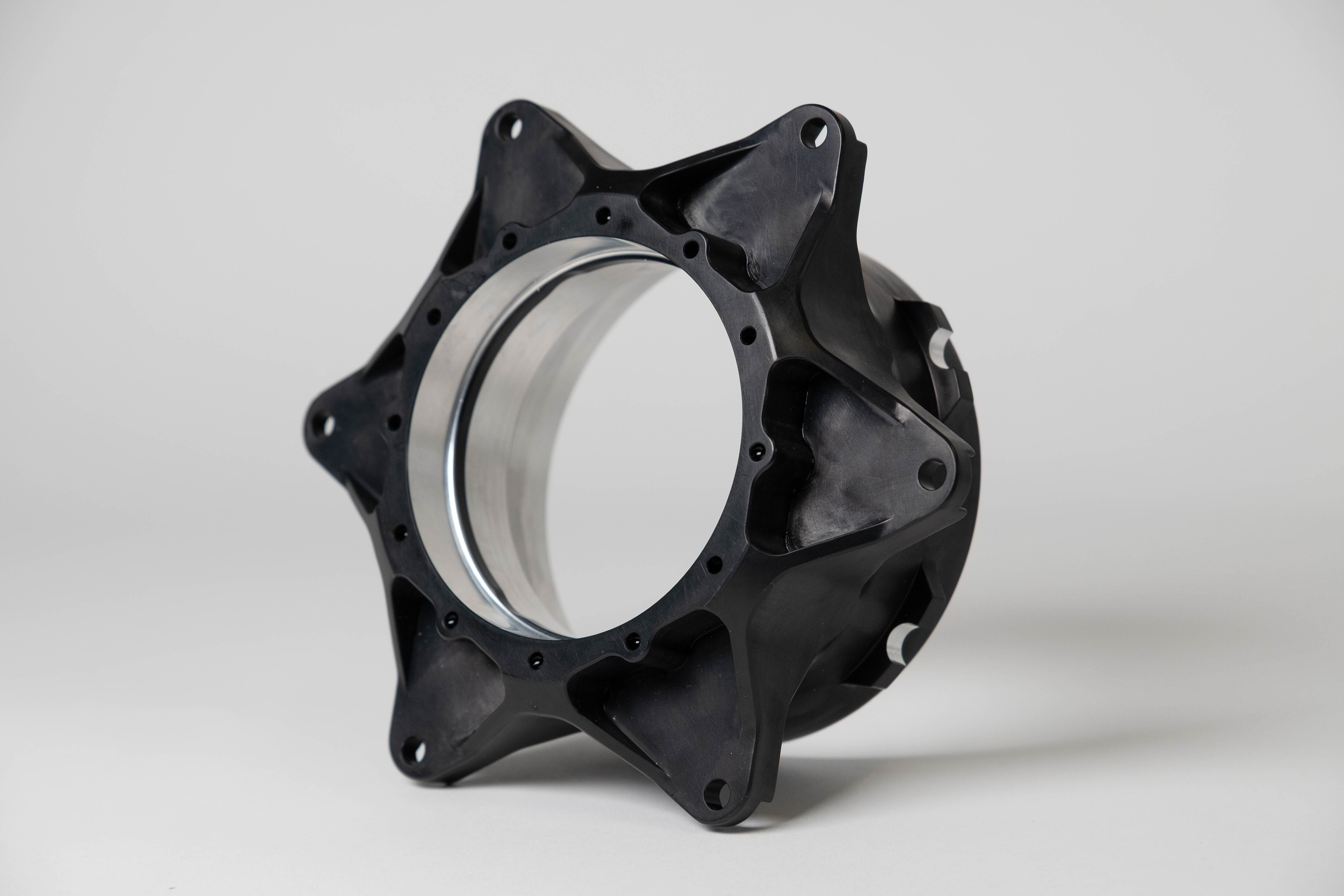

My own part: The MY25 Hubs.

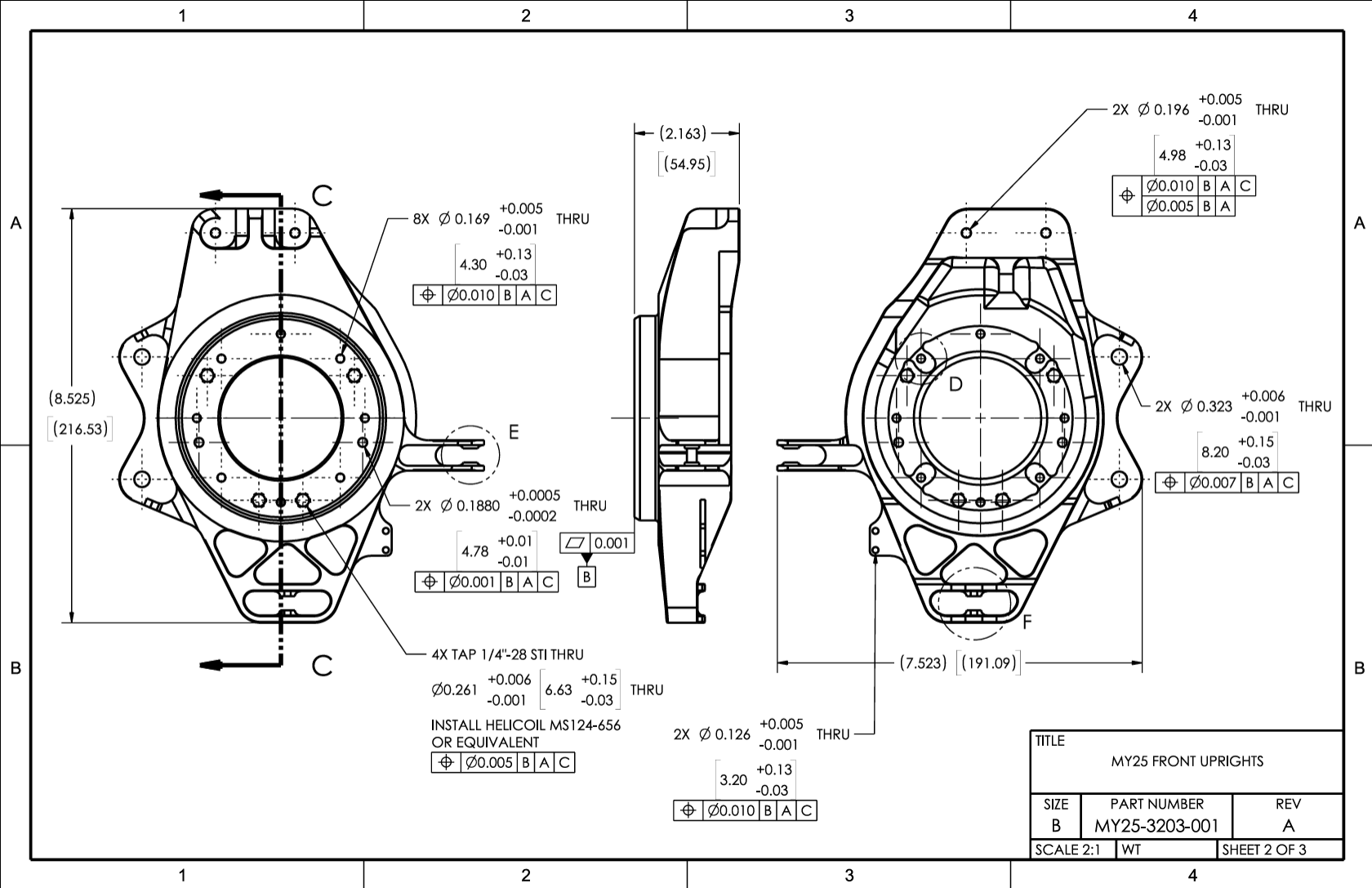

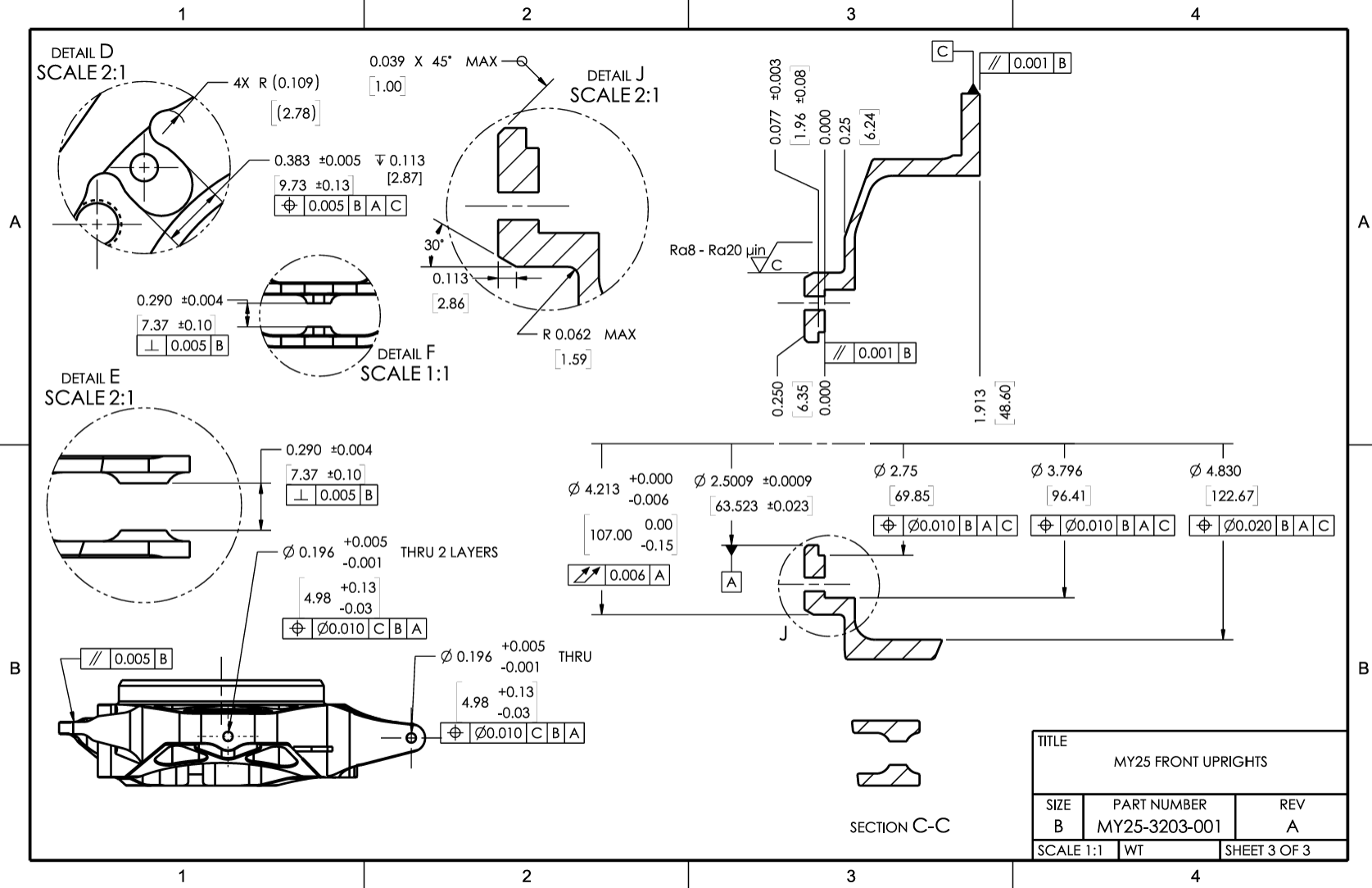

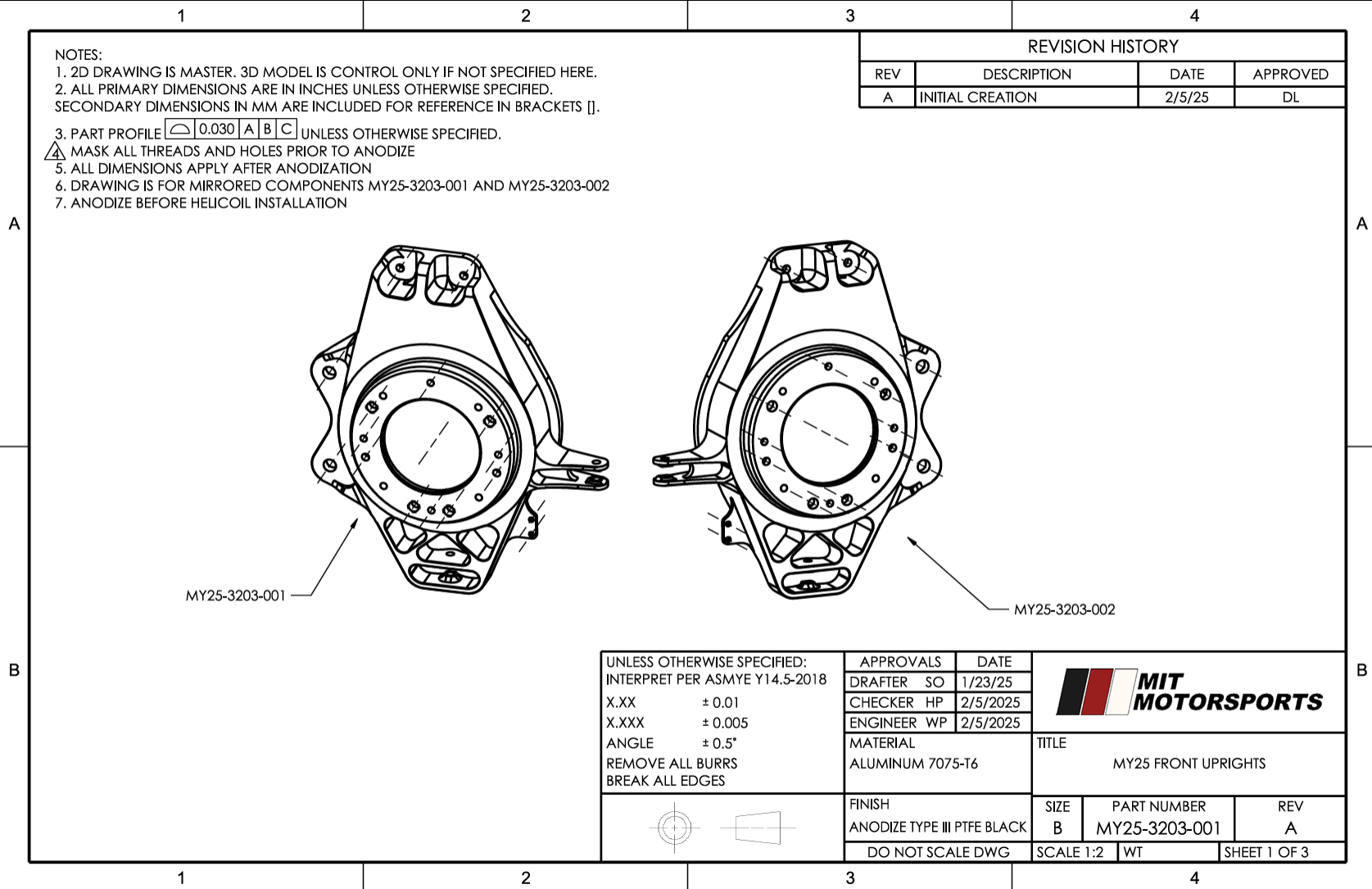

The Uprights. Designed by Nicholas Duran '26, Wasim Pysadee '26, and Derek Chan '27.
My own part: The MY25 Hubs.
The Uprights. Designed by Nicholas Duran '26, Wasim Pysadee '26, and Derek Chan '27.
