For Model Year 26, I was the team GD&T reviewer, and handled drawings for a few components. Attached is my work.

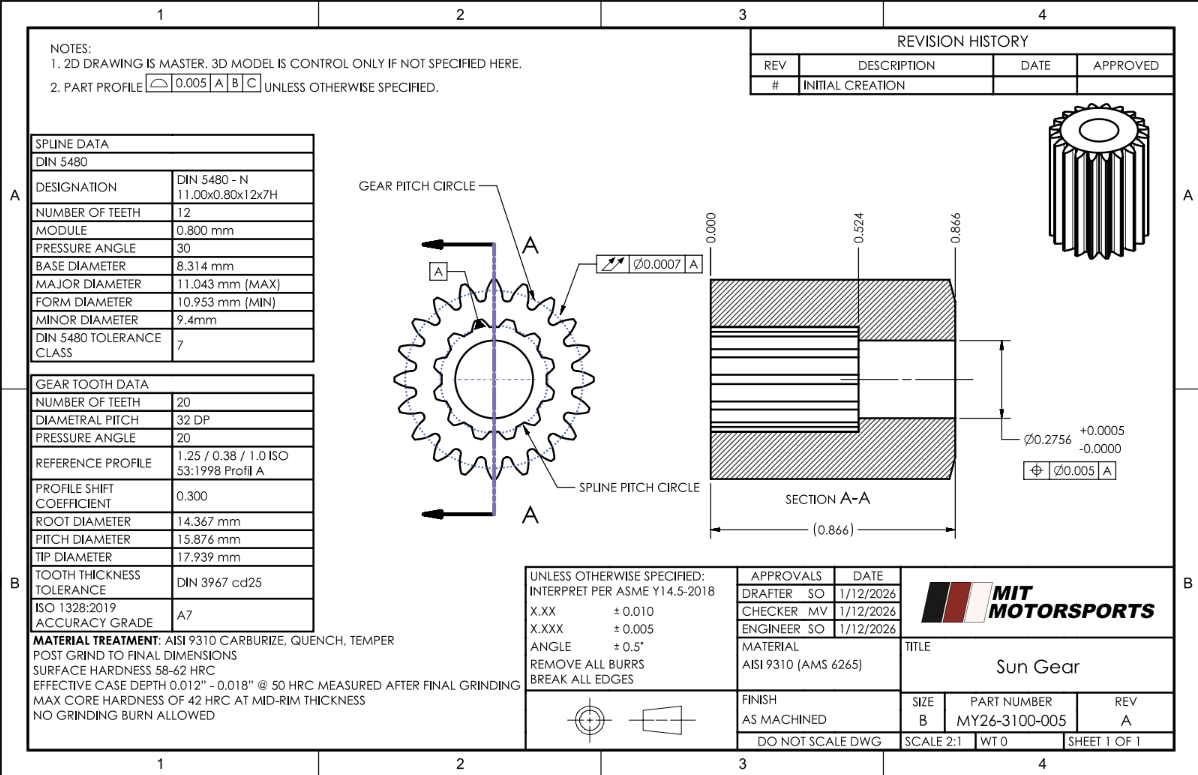

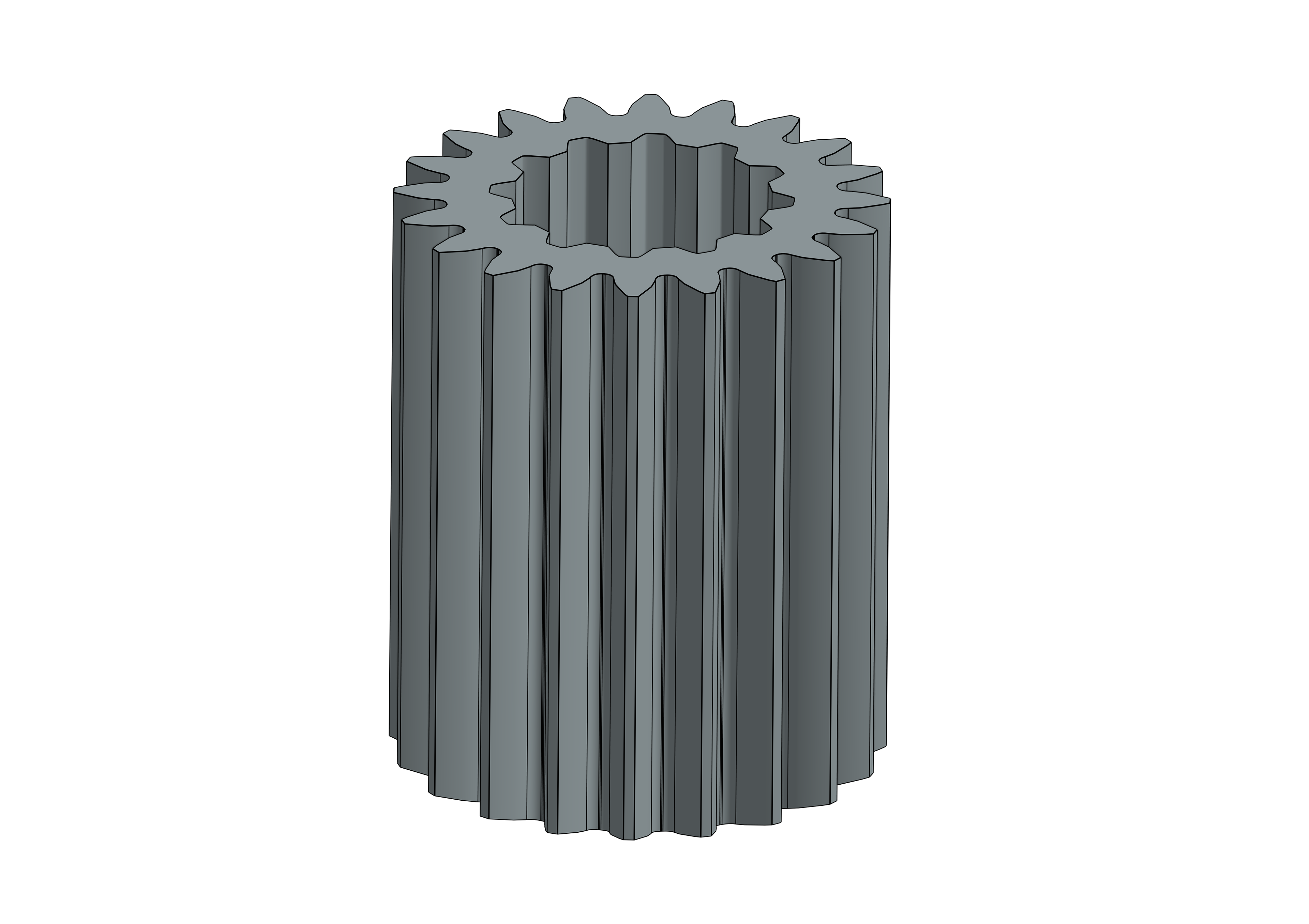

The MY26 Sun Gear.

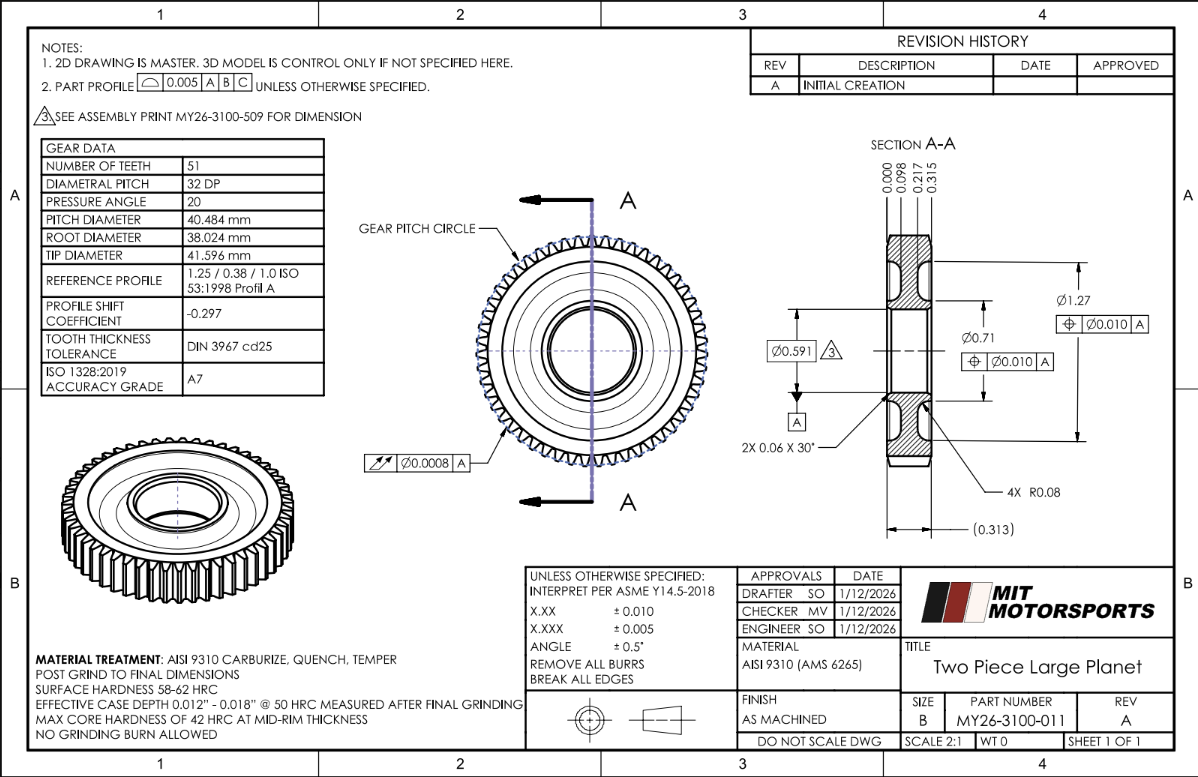

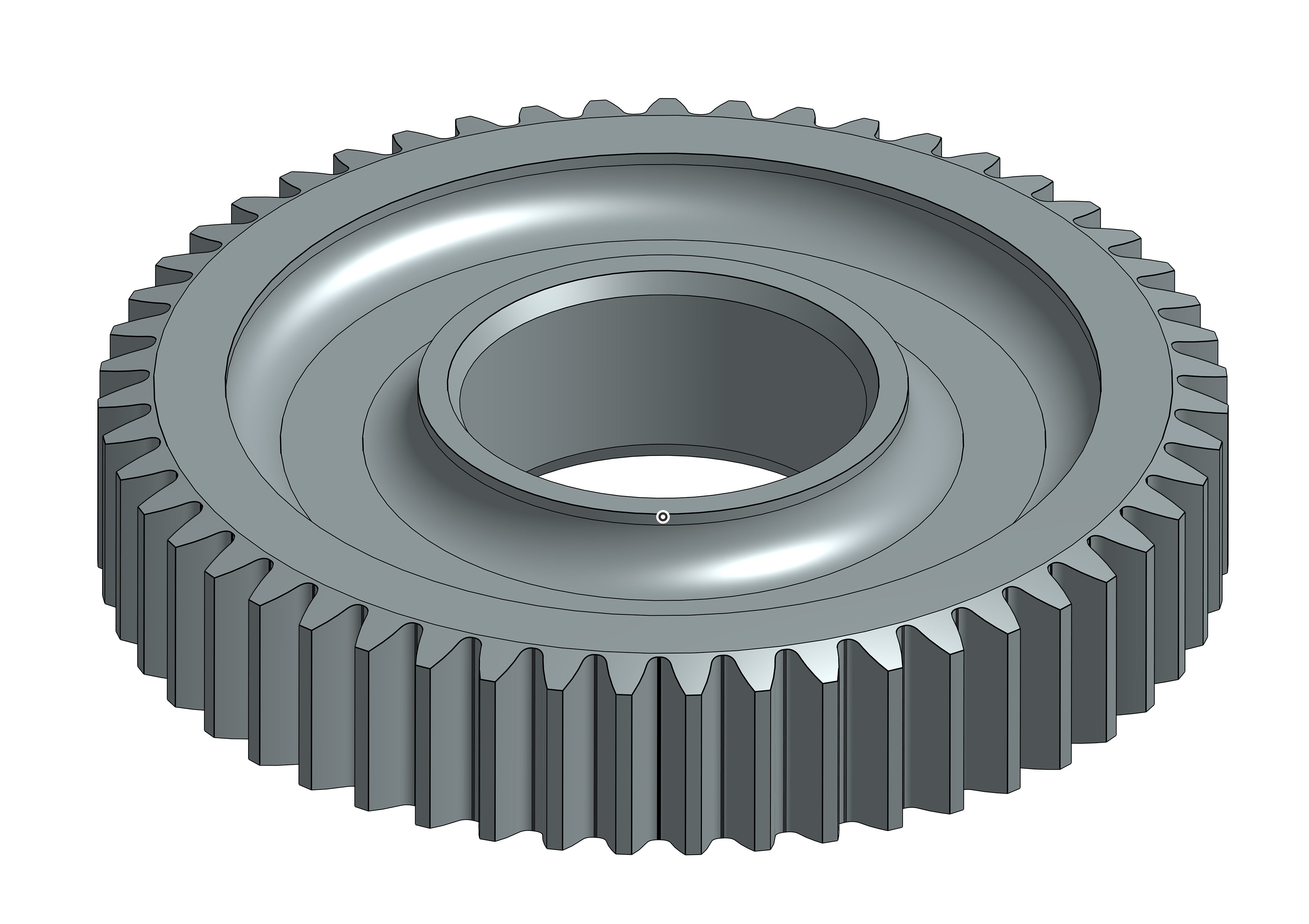

The MY26 Large Planet.

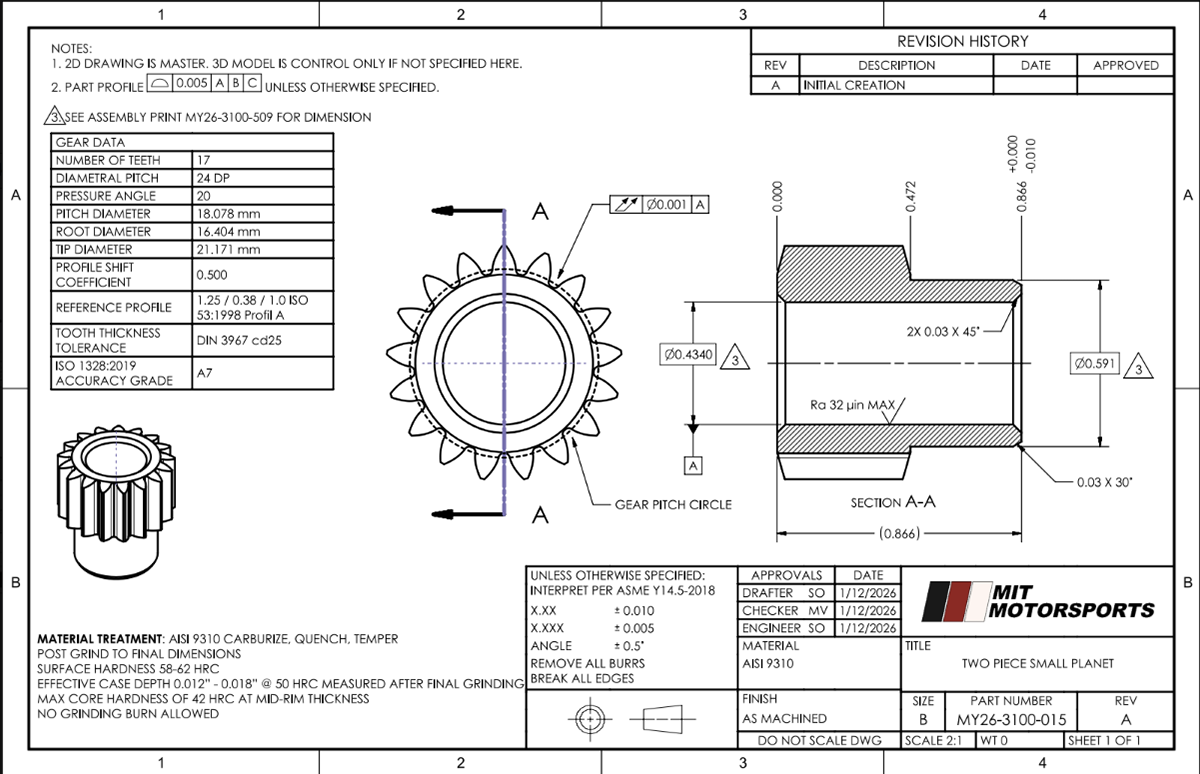

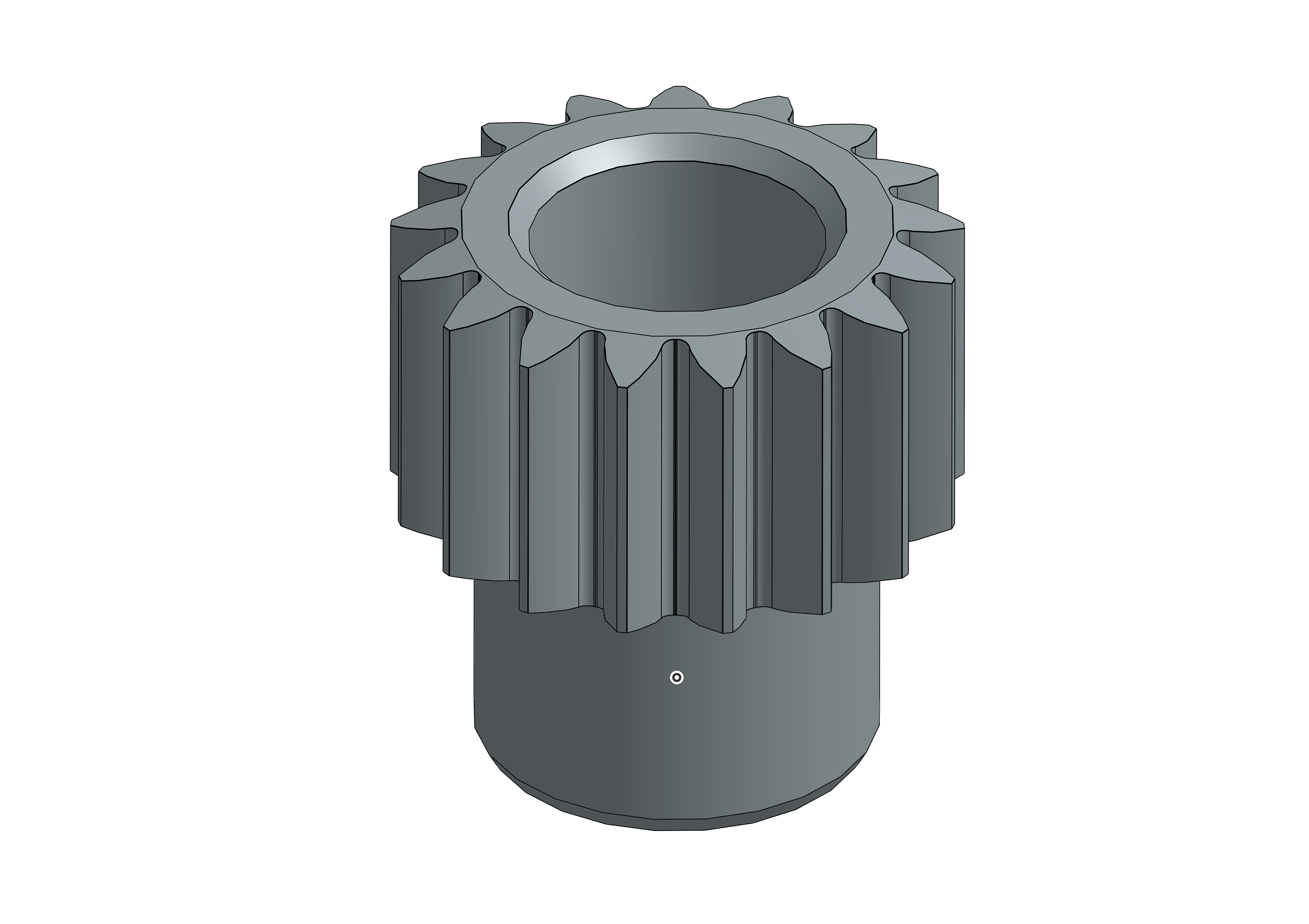

The MY26 Small Planet

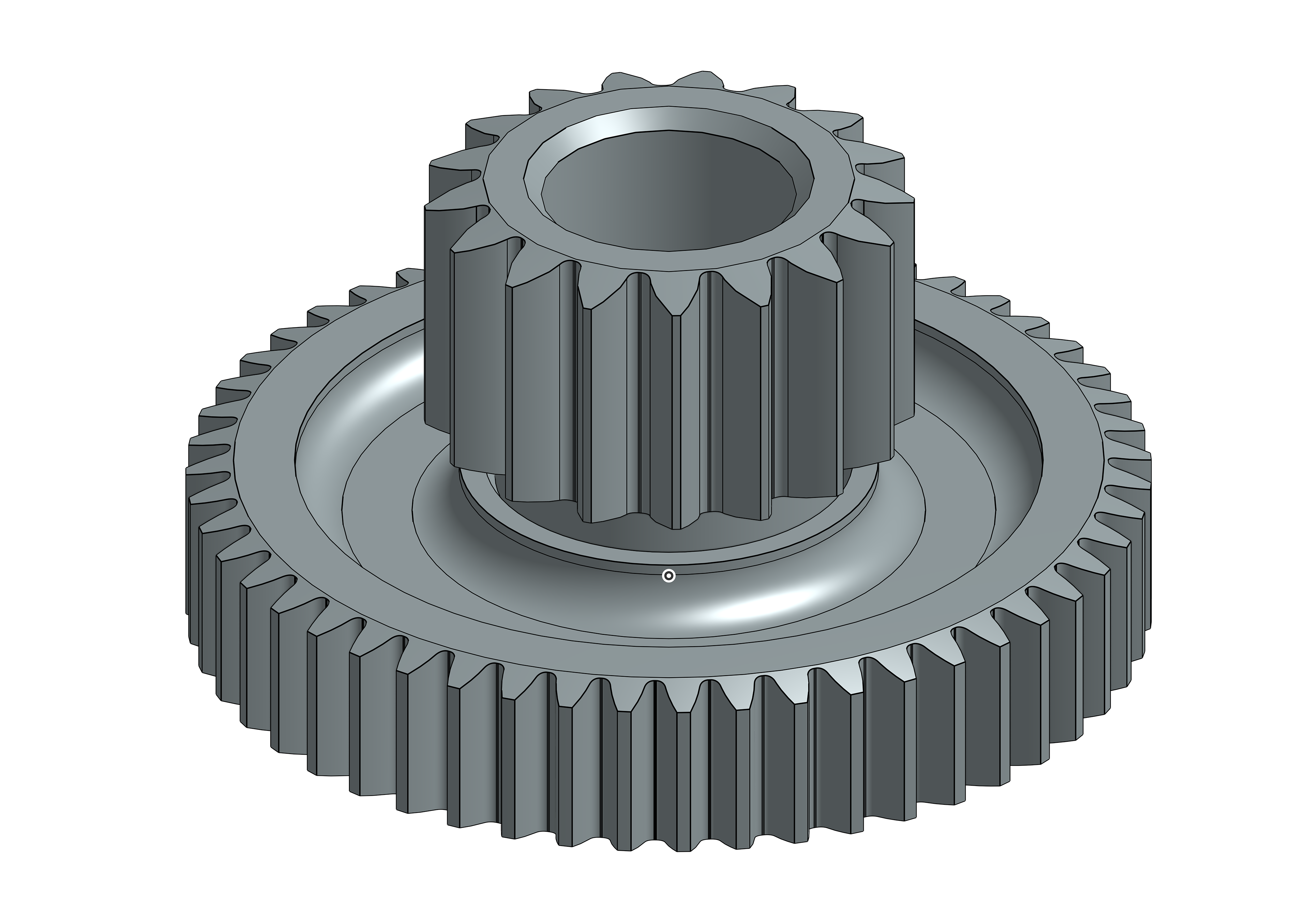

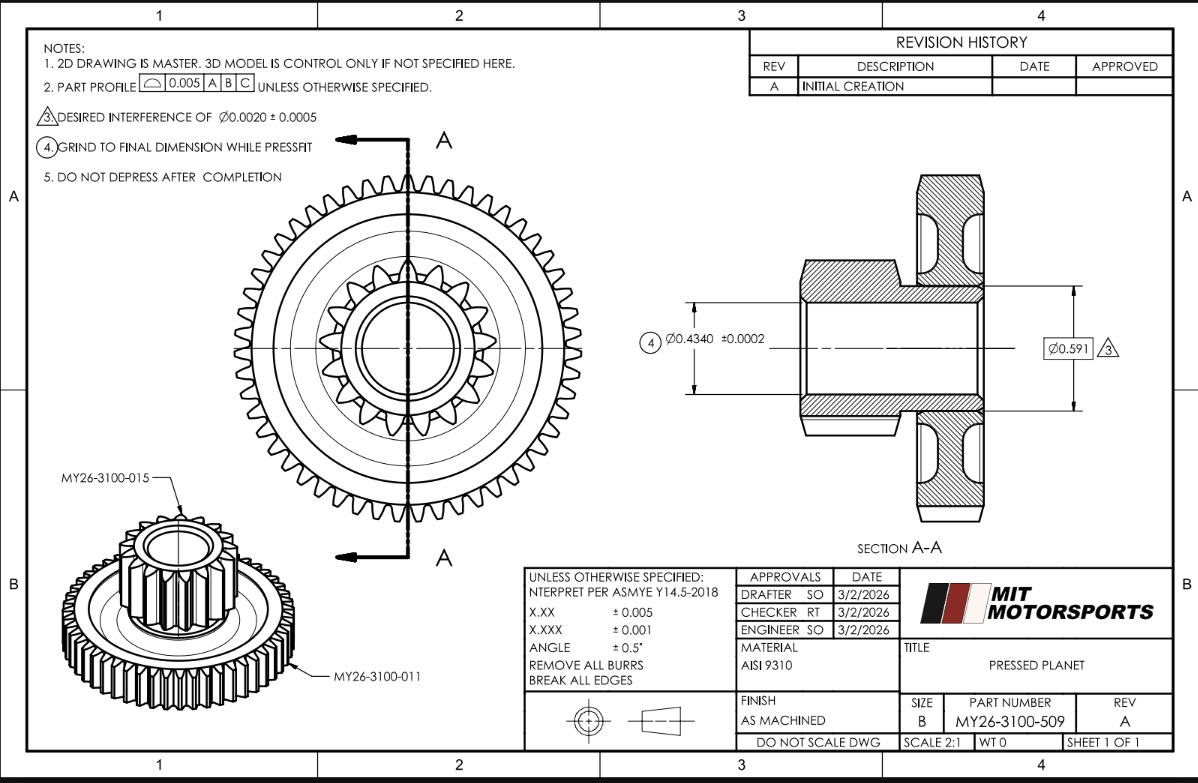

The MY26 Planet Subassembly

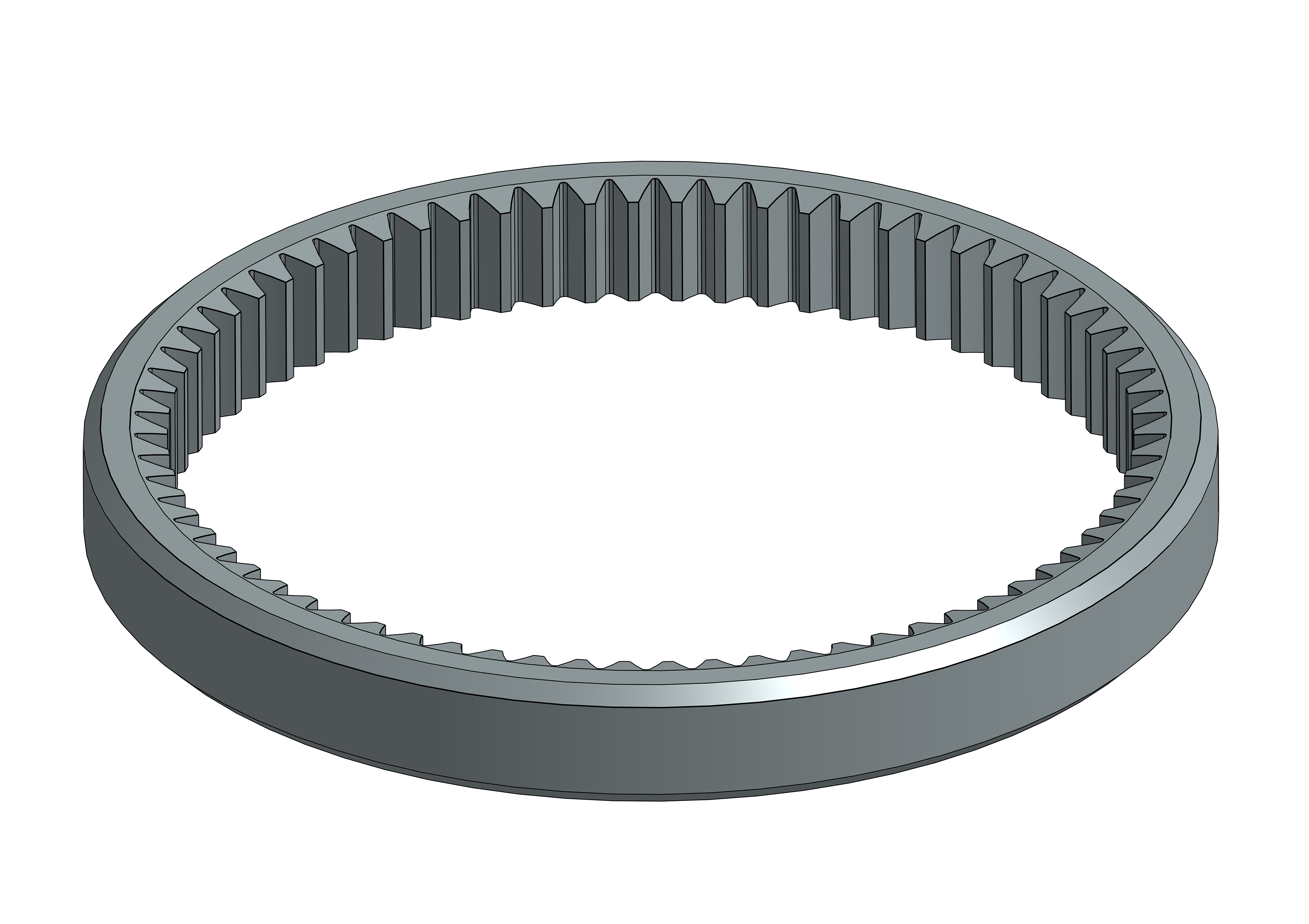

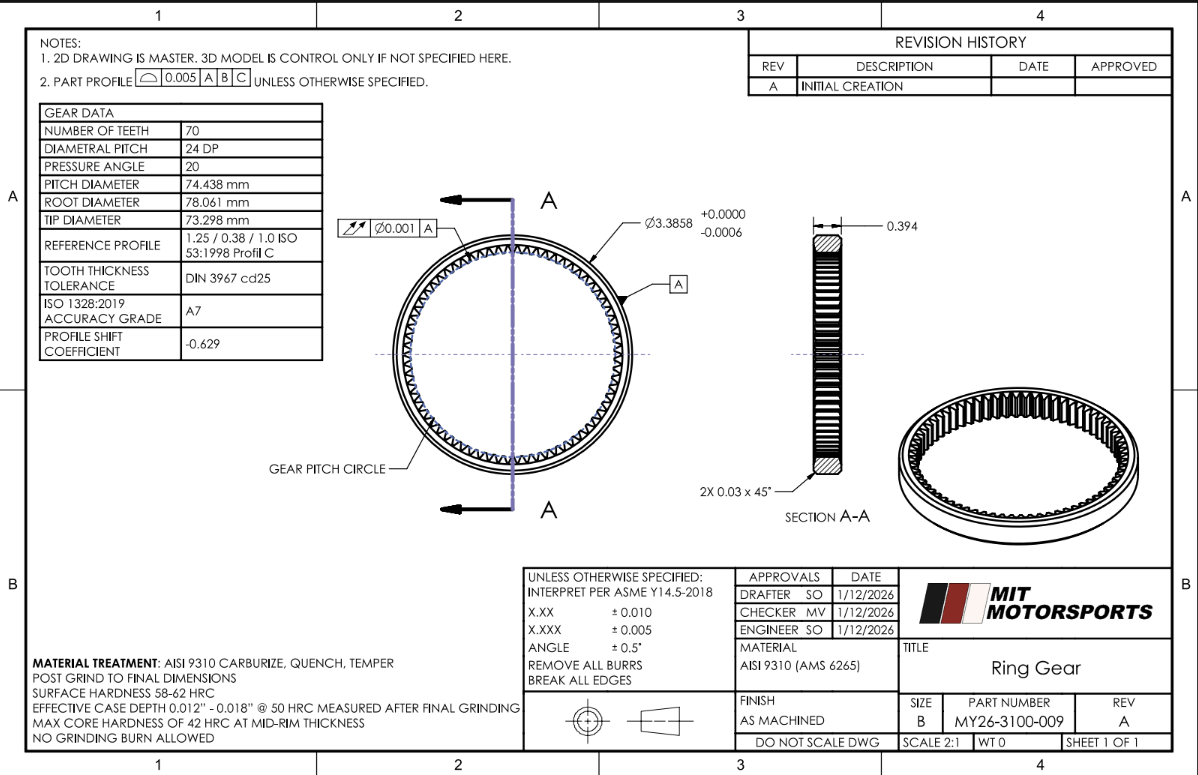

The MY26 Ring Gear.

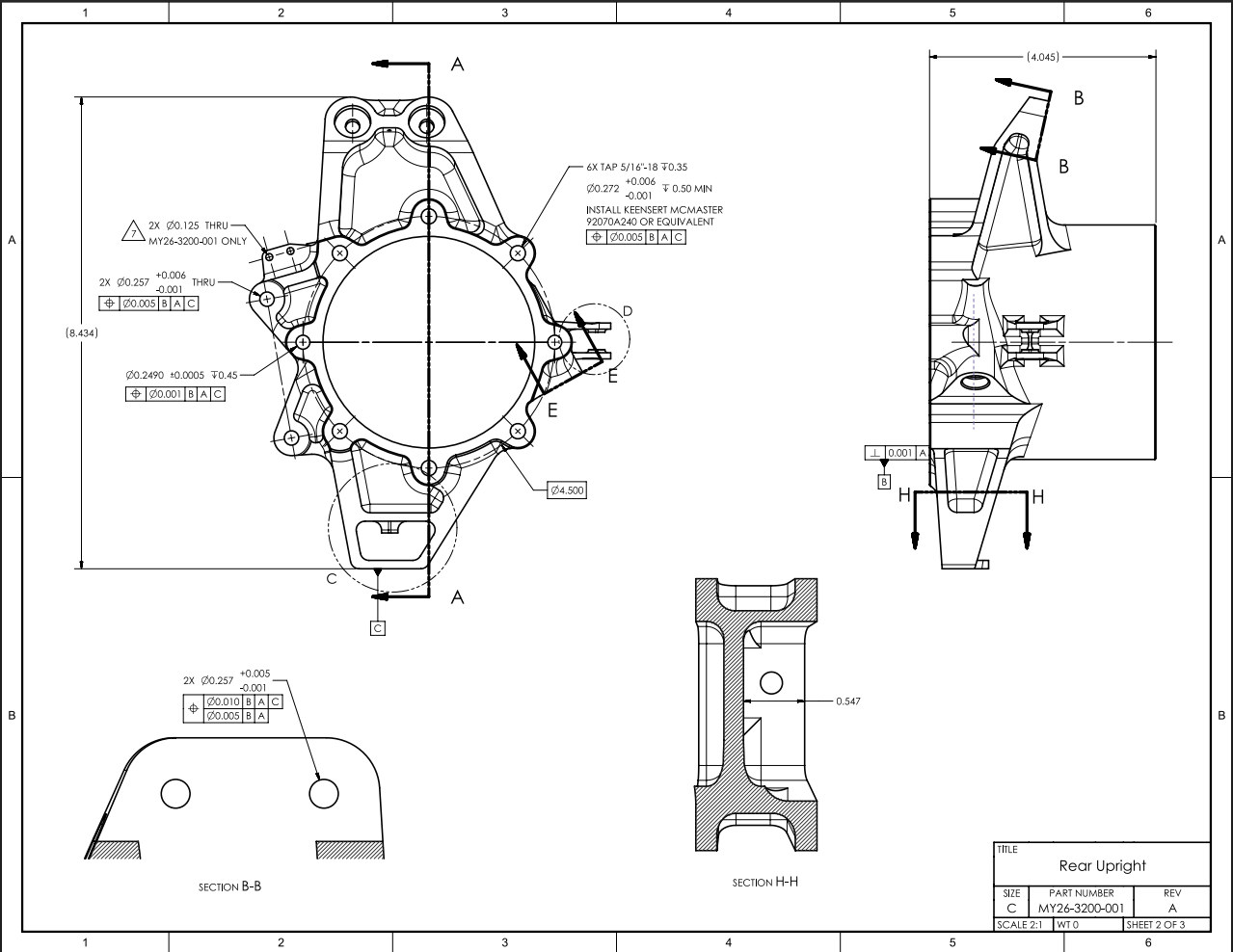

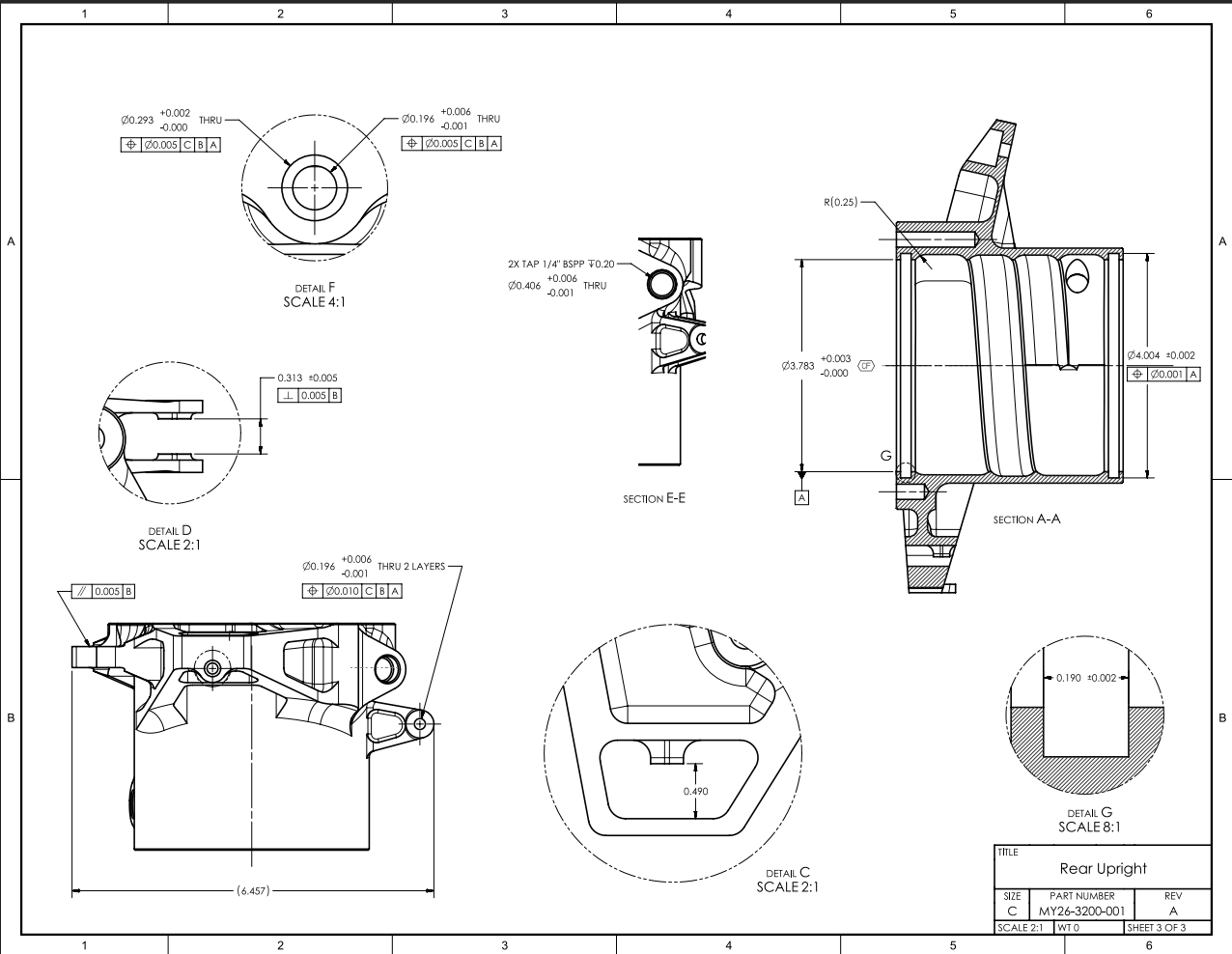

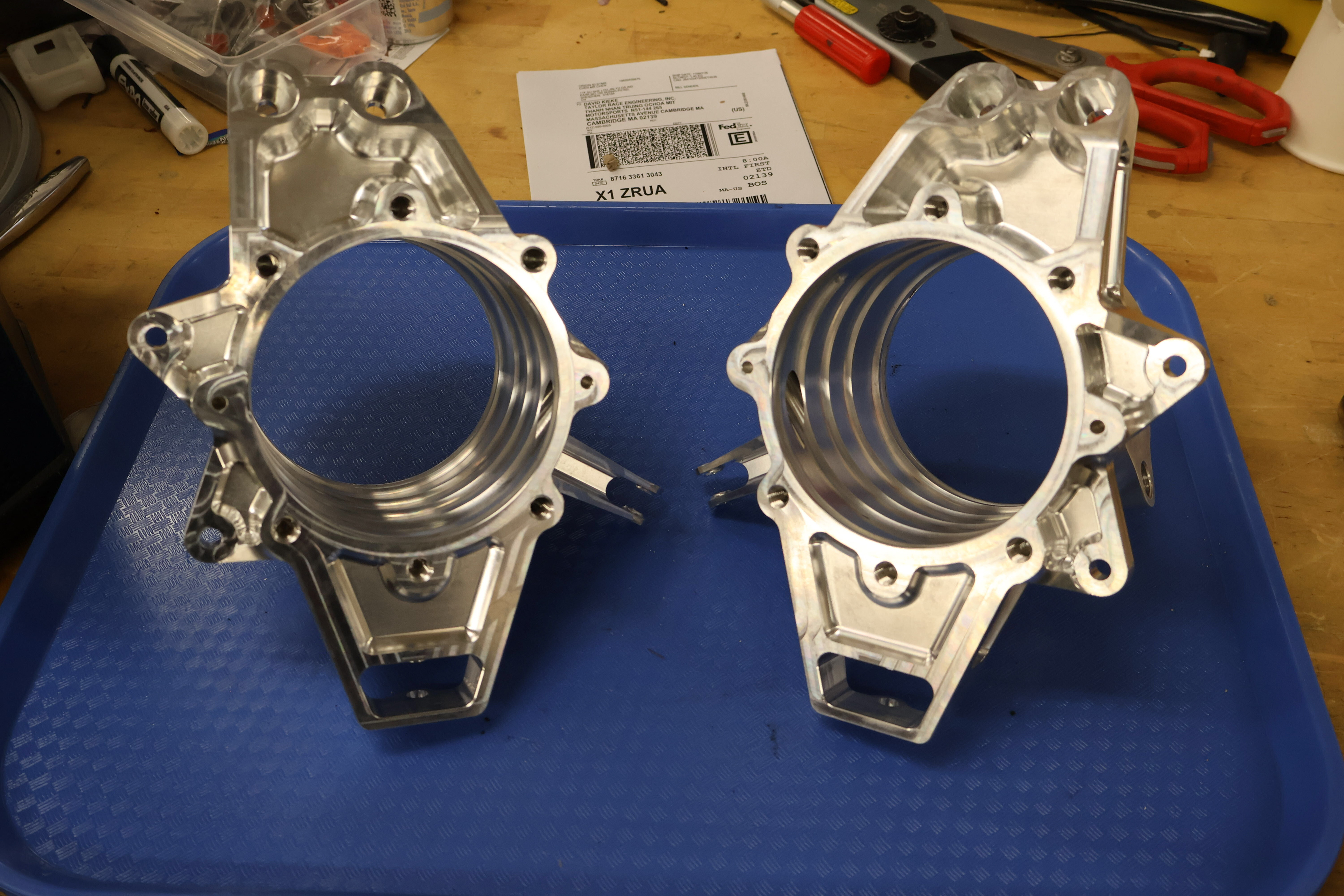

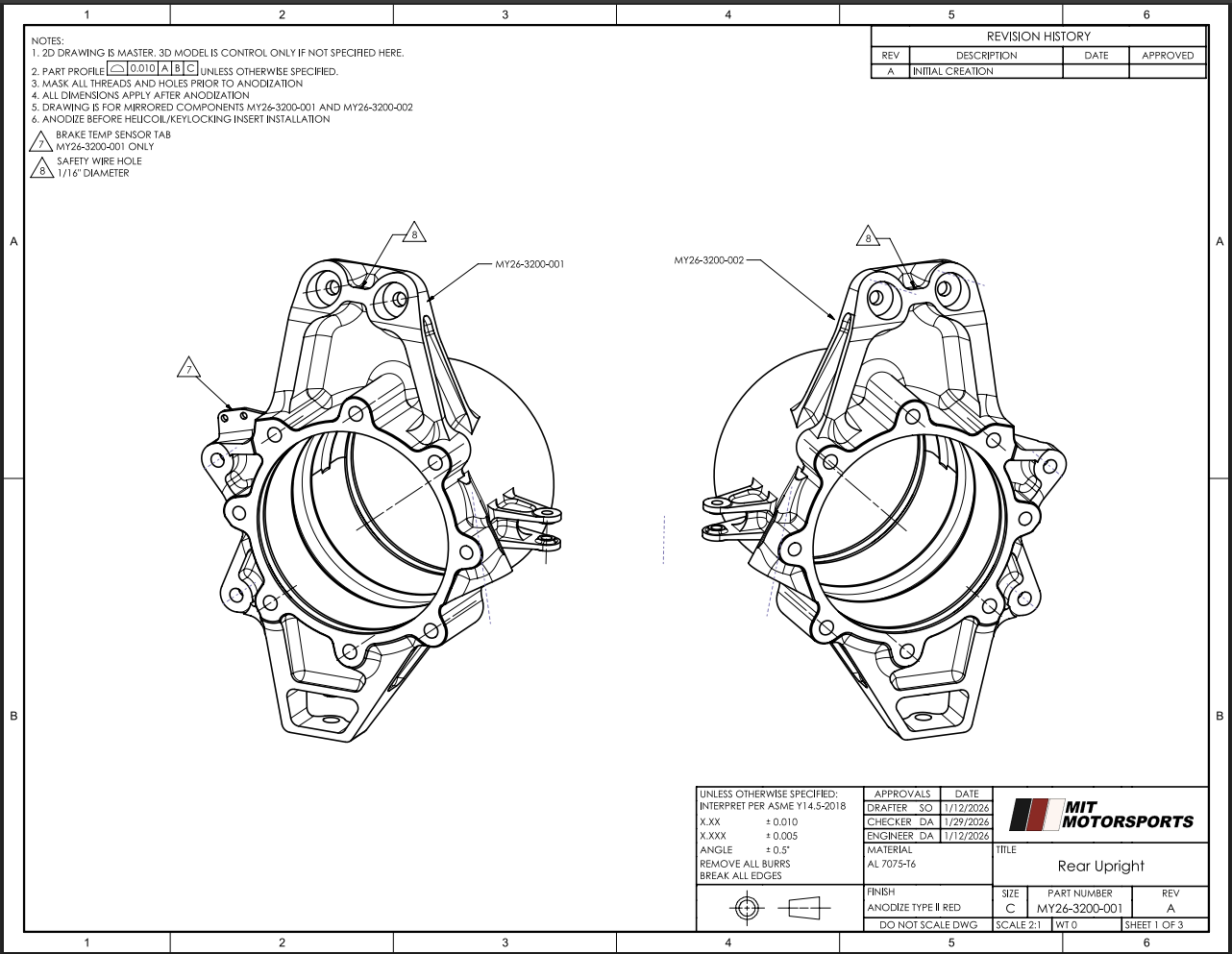

The MY26 Rear Uprights. Designed by Debbie Ang 28'.

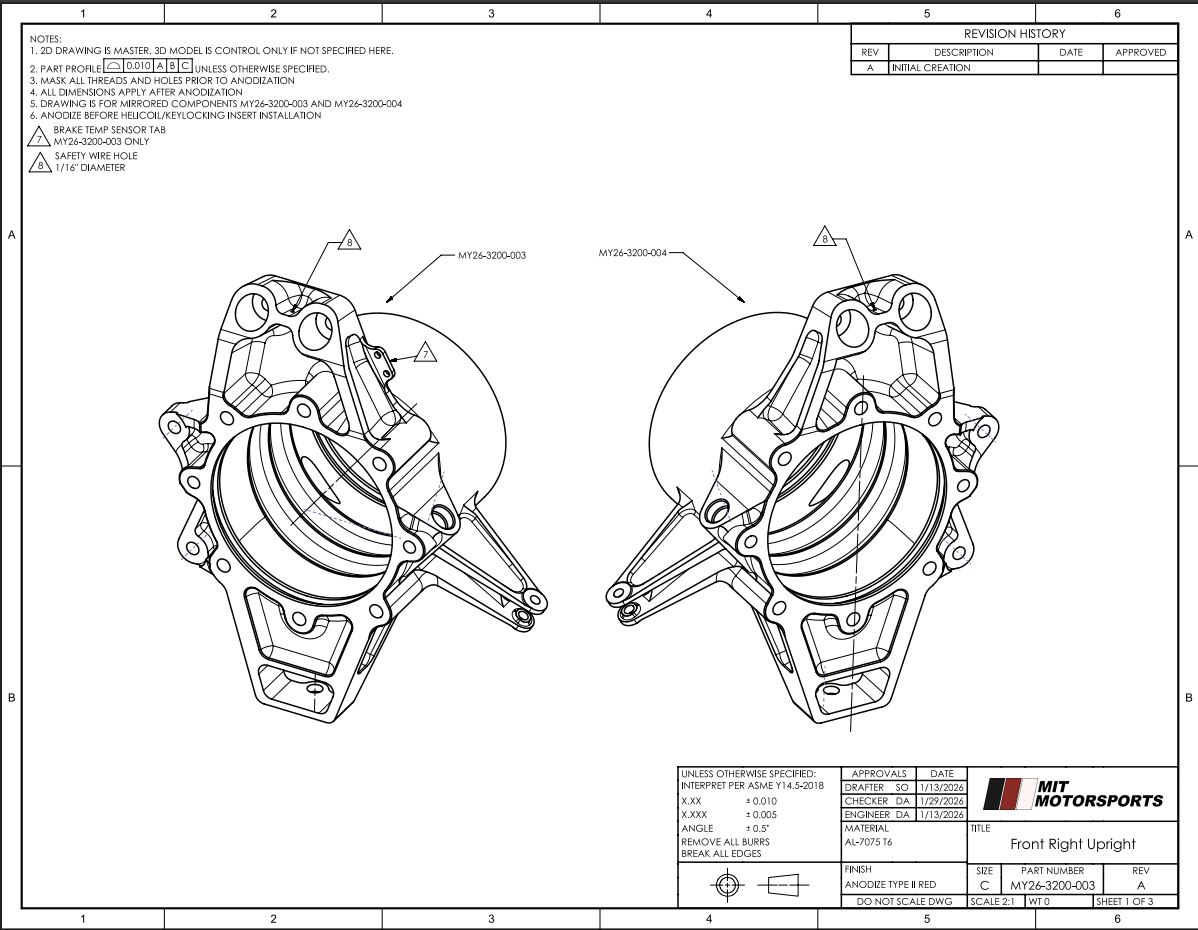

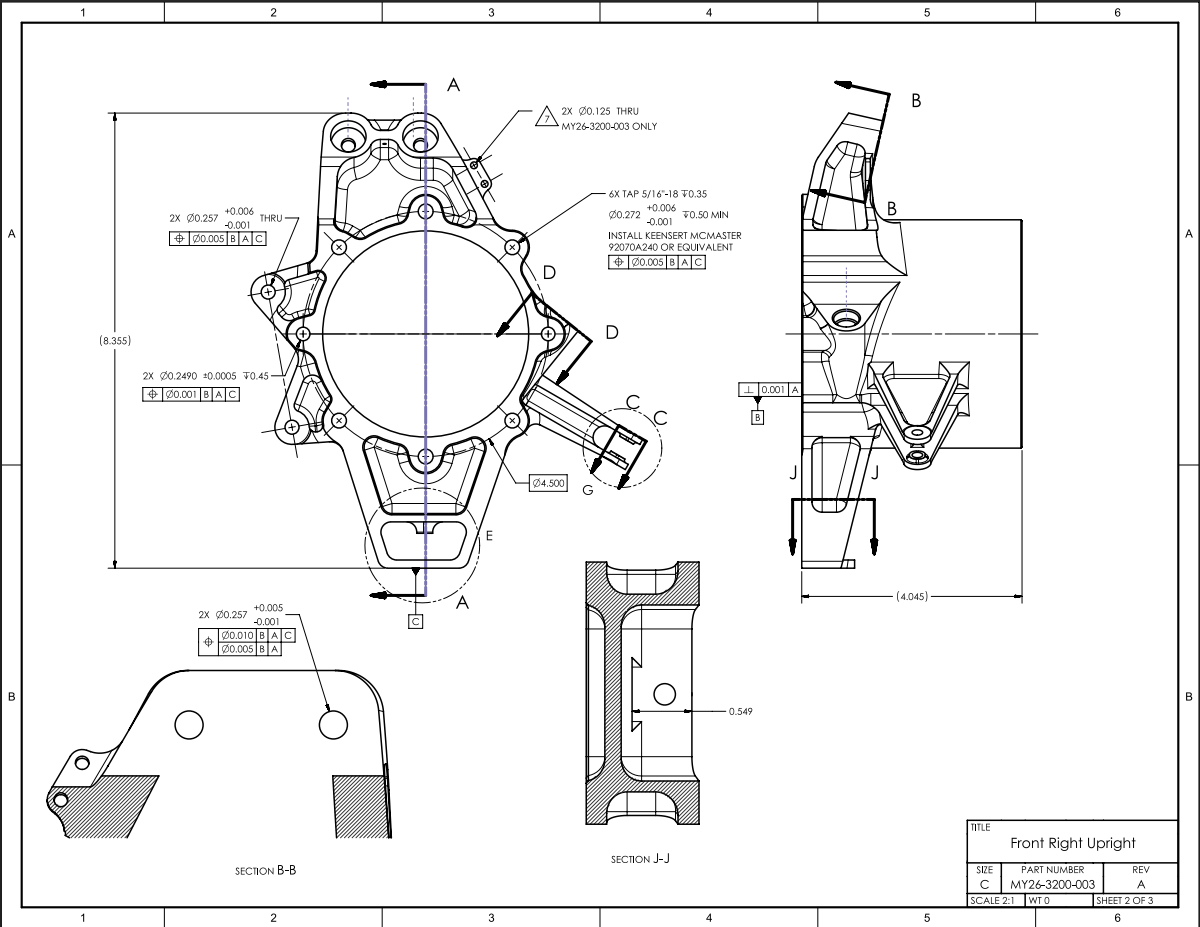

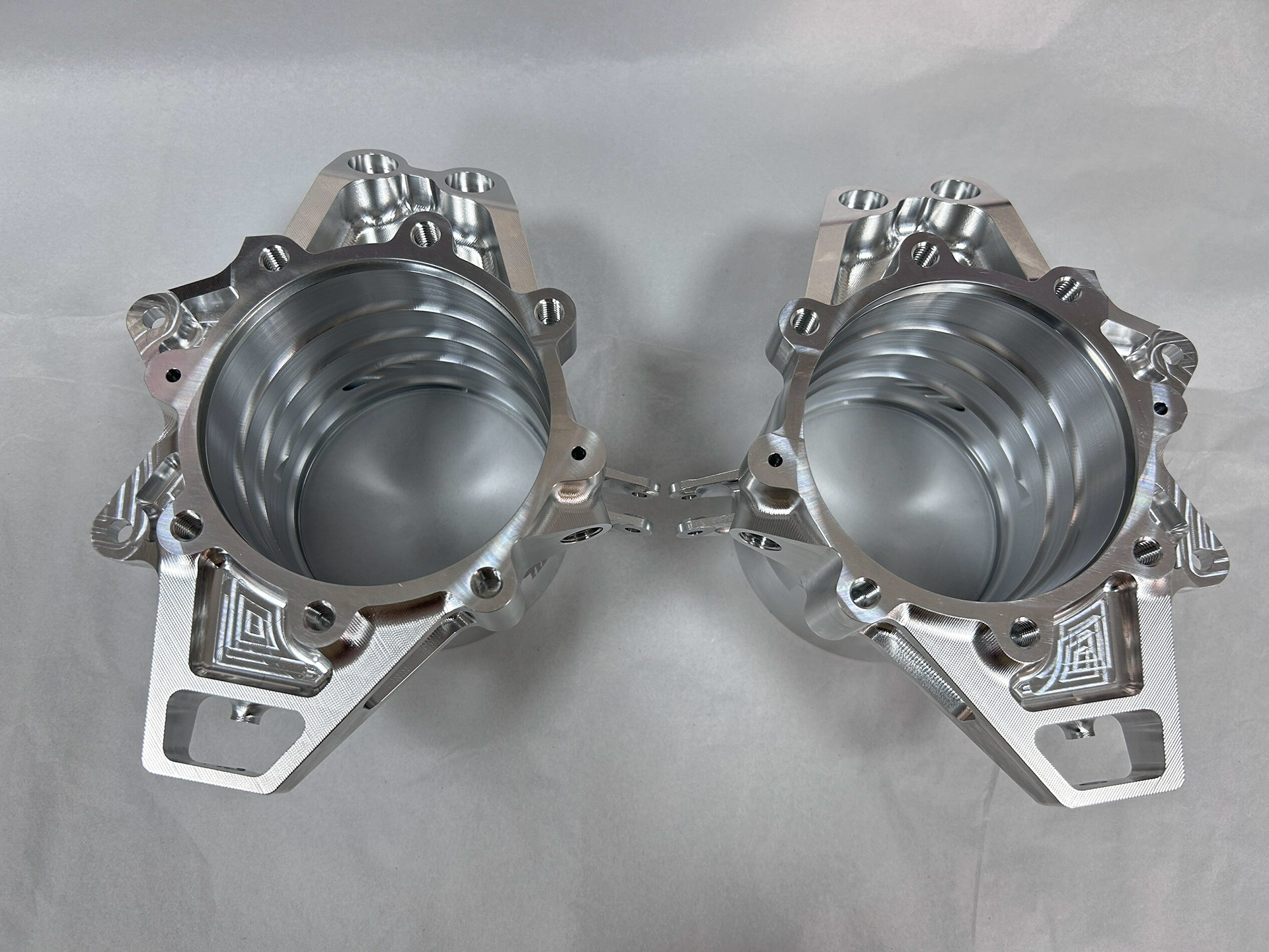

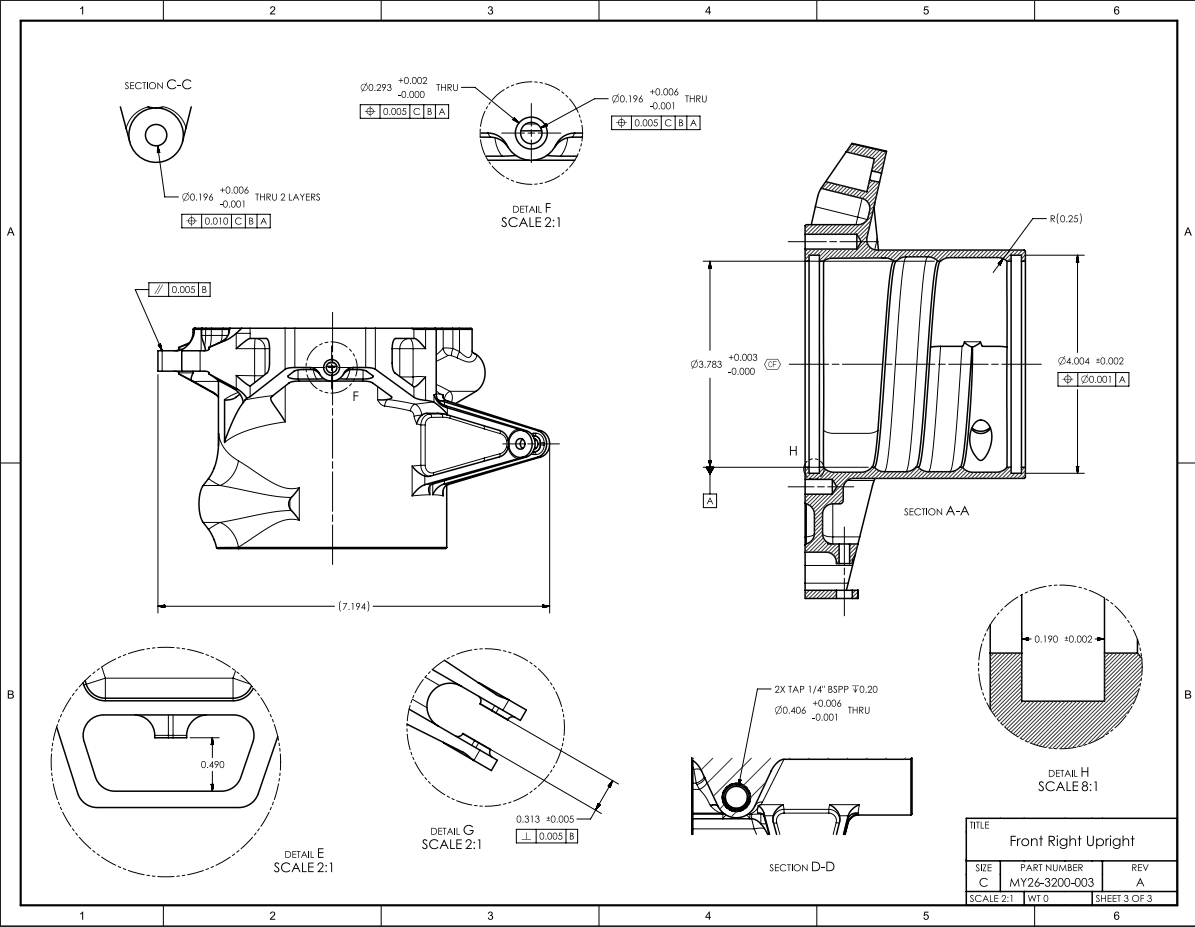

The MY26 Front Uprights. Designed by Debbie Ang 28'.
